DC-UHB25 – Double Sided UHB Tape

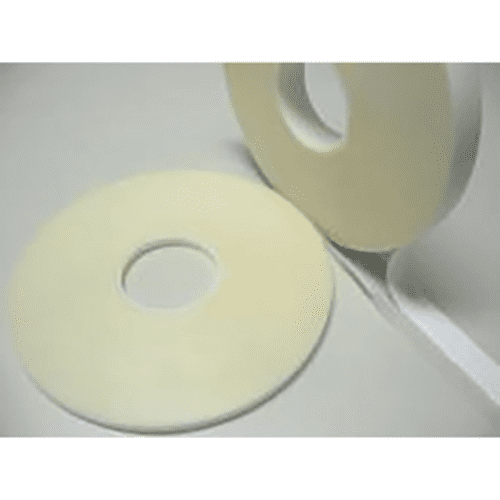

DC-UHB25 – Double Sided UHB Tape 72 yard, 25 mil Ultra High Bond Acrylic Adhesive structural grade tape comprised of an integral core of solid acrylic polymer, coated on both sides with a uniform high-tack acrylic adhesive. Provides a superior, permanent bond between a wide variety of substrates, including glass, some plastics, composites, sealed wood, metals and painted metals Withstands a wide range of weathering and temperature conditions without losing adhesion. Non-staining, will not harden or become brittle with age. Maintains adhesion at sub-zero temperatures. Solid acrylic core gives tape superior strength, can be easily applied and cleanly cut, yet is flexible, moldable, compressible & conformable to intricate shapes. Solid core is key for structural assembly, used primarily in transportation industry, automotive, truck, trailer & bus, OEM & aftermarket, as it isolates and dampens vibration and shock. DC-UHB45 approved for certain GM, Ford and Chrysler specifications. Ultra High Bond Acrylic Adhesive Tapes are carried on a 7 mil white polyethylene release liner. Tape bonds to most surfaces, but thorough evaluation is recommended when bonding on low energy surface materials such as PVC, ABS, PE, PP. Not recommended for bonding Teflon™, Tedlar™, Silicone or EPDM Applications: Rugged metal to metal bonds to replace welding, rivets, bolts, screw and cementing Signs, graphic arts assemblies Furniture/appliance mfg RV skin to frame assembly Physical Properties: Application Temperature: 50°F to 100°F Temperature Range: -30°F to 200°F Density: 62.5 lbs/ft³ Tensile Strength: 200 lb/in² Dynamic Shear Strength: 90 lb/in² Elongation: 500% Peel Adhesion: 240 oz/in Cleavage Strength: 30 lb/in² 3″ plastic core Alternative to 3M #4925, #4929, #4930, #4936; ADCO #AT-3, AT-3025; SCAPA #S5300A; Hi-Bond #VST-6025G
