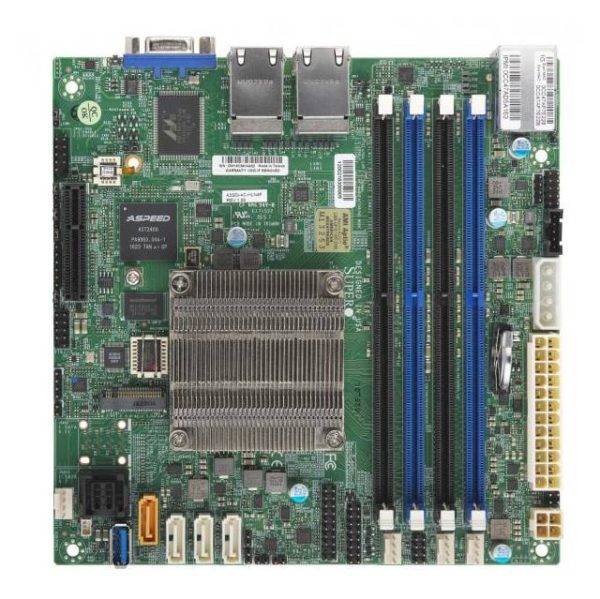

Supermicro A2SDI-4C-HLN4F-O Intel Atom C3558- DDR4- SATA3&USB3.0- M.2- V&4GbE- Mini-ITX Motherboard & CPU Combo
$48.04
$86.95
Description Specifications Mfr Part Number: A2SDI-4C-HLN4F-O CPU (Included): Intel Atom C3558 Processor; Supports up to 16W TDP (Quad-Core) Chipset: System-on-Chip Memory: 4x DDR4-2400/ 2133/ 1866/ 1600MHz DIMM Slots, Support up to 128GB ECC REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory Slots: 1x PCI-Express 3.0 x4 Slot Storage: SATA: 8x SATA3 Ports M.2: 1x M.2 Port (supported M-Key 2242/ 2280 & SATA & PCI-Express 3.0 x2) Video: Aspeed AST2400 BMC Graphics LAN: Quad LAN with Intel C3000 SoC Gigabit Ethernet Controller Ports: 1x USB 3.0 Port (1 Type A via header), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 4x RJ45 LAN Ports Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.02 x 17.02 cm Intel Atom C3558 is included with this motherboard. RoHS Complaint
