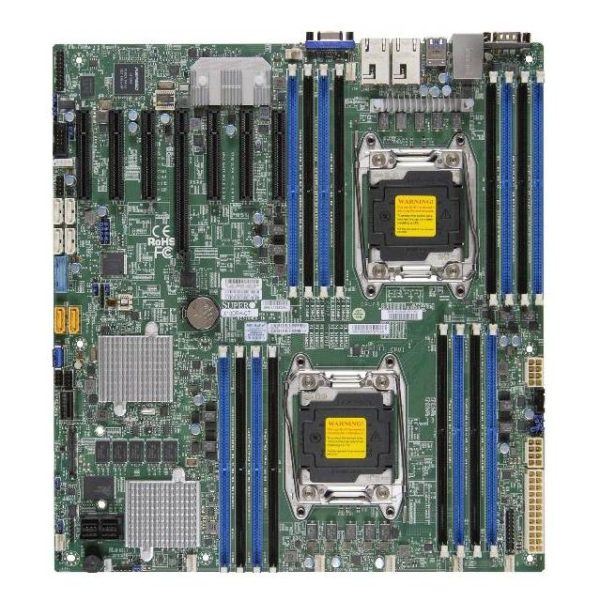

Description Specifications Mfr Part Number: X10DAC-B CPU: Dual LGA2011 Support Intel Xeon E5-2600 v3 Family Processors Support up to 18 Cores Support up to 45MB Cache QPI up to 9.6 GT/s Support up to 160W TDP Chipset: Intel C612 Express Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory Slots: 3x PCI-Express 3.0 x16 Slots, 2x PCI-Express 3.0 x8 Slots, 1x PCI-Express 2.0 x8 (runs at x4) SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10 SAS: 8x SAS3 Ports, Support RAID 0, 1, 10 Audio: Realtek ALC888 7.1-Channel High Definition Audio CODEC w/ S/PDIF Header LAN: Intel i210 Dual-Port Gigabit Ethernet Controller Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports Form Factor: EATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm RoHS Compliant
