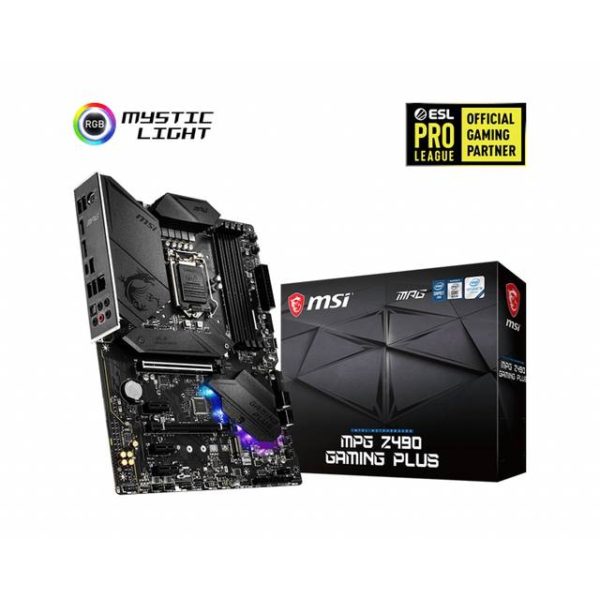

Description Specifications Mfr Part Number: Z490GAPLUS (MPG Z490 GAMING PLUS) Processor: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket Chipset: Intel Z490 Chipset Memory: 4x DDR4 memory slots, support up to 128GB Supports 1R 2133/2666/2933 MHz- 1DPC 1R Max speed up to 4800 MHz- 1DPC 2R Max speed up to 4266 MHz- 2DPC 1R Max speed up to 4400 MHz- 2DPC 2R Max speed up to 4000 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Expansion Slots: 1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 3x PCIe x1 slots (from PCH) Onboard Graphics: 1x HDMI port, supports a maximum resolution of 4096×2160 @30Hz 1x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz Multi-GPU: Supports AMD 2-Way CrossFire Technology Storage: Intel Z490 Chipset– 6x SATA 6Gb/s ports- 2x M.2 slots (Key M)* M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices* M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices* Intel Optane Memory Ready* Supports Intel Smart Response Technology for Intel Core processors RAID: €‹Intel Z490 Chipset- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices- Supports RAID 0 and RAID 1 for M.2 PCIe storage devices USB: €‹Intel Z490 Chipset– 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel)- 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector)- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) Audio: Realtek ALC1200-VD1 Codec– 7.1-Channel High Definition Audio- Supports S/PDIF output LAN: 1x Realtek RTL8125B-CG 2.5G LAN Controller Internal Connectors: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x chassis intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x TPM module connector 1x TBT connector Back Panel Ports: PS/2 Combo Port USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors USB 2.0 HDMI Port DisplayPort USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT Dimensions: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) Mounting: 9 mounting holes Operating System: Support for Windows 10 64-bit *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
